Capacitors Kit for Sega Game Gear
Capacitors Kit for Sega Game Gear
Capacitors Kit for Sega Game Gear

Capacitors Kit for Sega Game Gear

by Generic
$3.99 - $5.99
$5.99
$3.99 - $5.99
$5.99

If you're looking to replace the capacitors on your Sega Game Gear, this kit will provide you with all the capacitors that you need!



Features

  • Contains all the capacitors needed for your Sega Game Gear
  • Replacing capacitors can fix low audio and dim screen problems



Included

Base Cap Kit:

  • 2 x 0.47u / 50v caps
  • 1 x 1u / 50v cap
  • 1 x 4.7u / 35v cap
  • 5 x 10u / 16v caps
  • 3 x 10u / 50v caps
  • 3 x 22u / 16v caps
  • 1 x 22u / 35v cap
  • 1 x 33u / 6.3v cap (33u / 16v)
  • 4 x 47u / 6.3v caps (47u / 16v)
  • 1 x 68u / 6.3v cap (68u / 25v)
  • 6 x 100u / 6.3v caps

PSU Cap Kit:



  • 1 x 22u / 35v caps
  • 1 x 100u / 25v cap
  • 1 x 1000u / 10v cap



Notes

  • The Base Cap Kit includes all the capacitors needed, with the exception of the three large PSU capacitors (22u/35v, 100u/25v, and 1000u/10v); we offer these separately.
  • This is an aftermarket product and may not be identical to its genuine counterpart
  • 5 stars: 13 (87%)
  • 4 stars: 2 (13%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
N
Nick Overstreet
Fixed my Game Gear back to working like new!

I had a Game Gear with no video and no sound output. I used this kit to re-cap the main board and sound board and the system works as good as new again! There were plenty of caps, it appears this one kit can handle any Game Gear revision, as I had extra caps I didn't need for my particular system. Excellent kit!

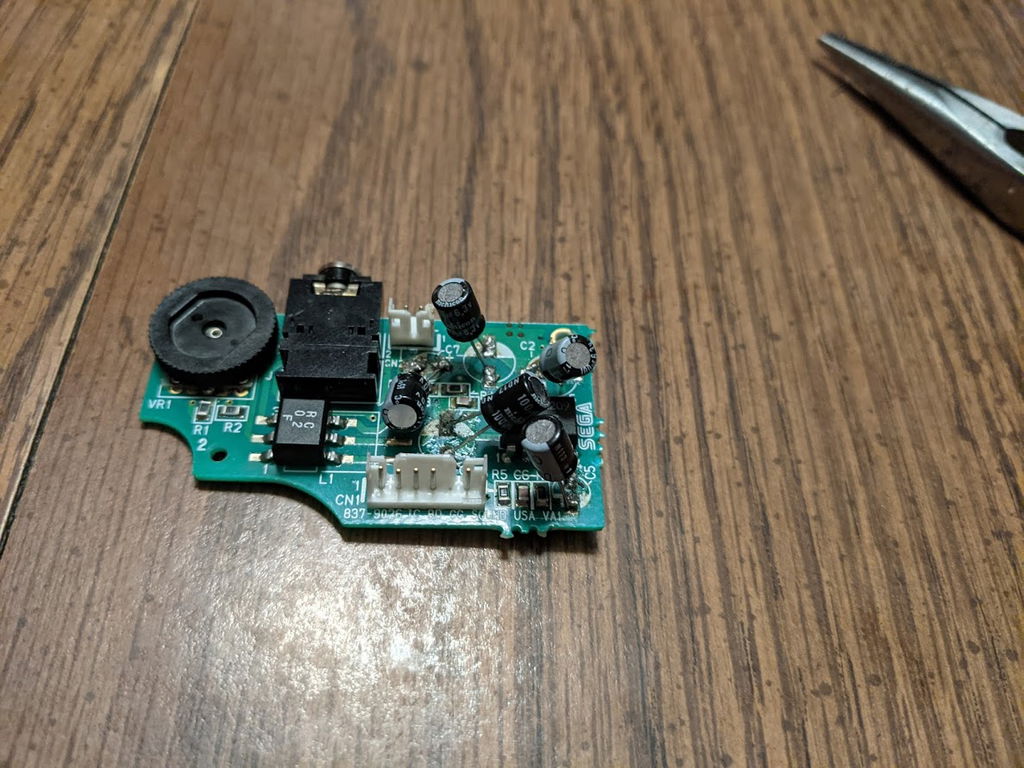

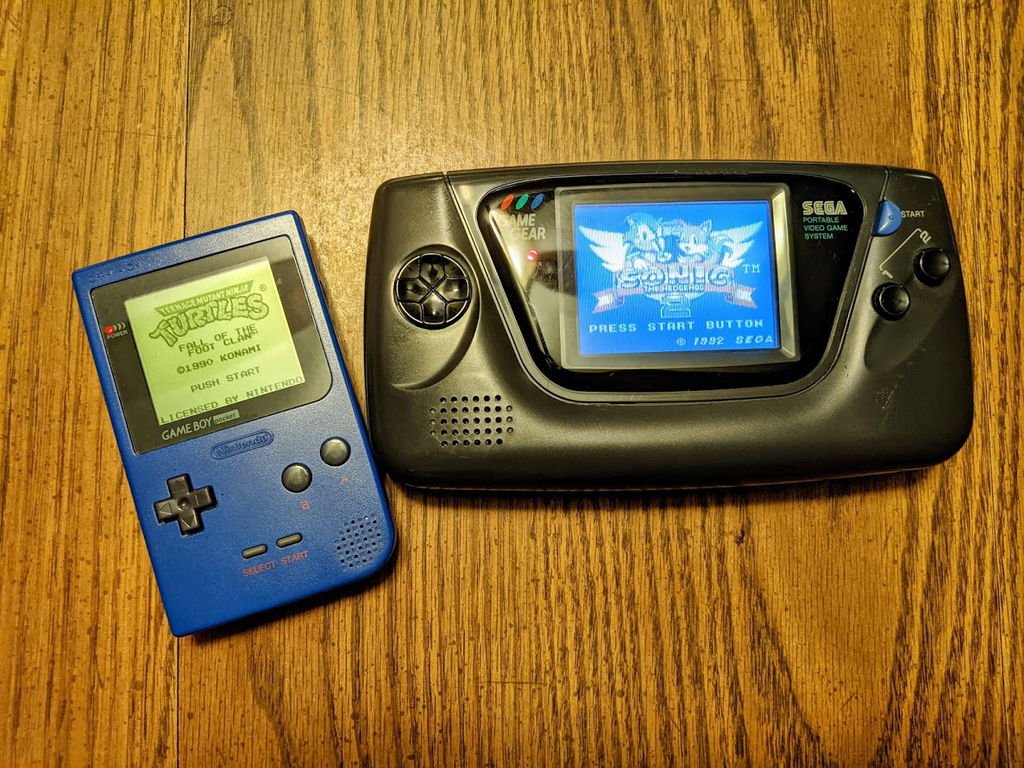

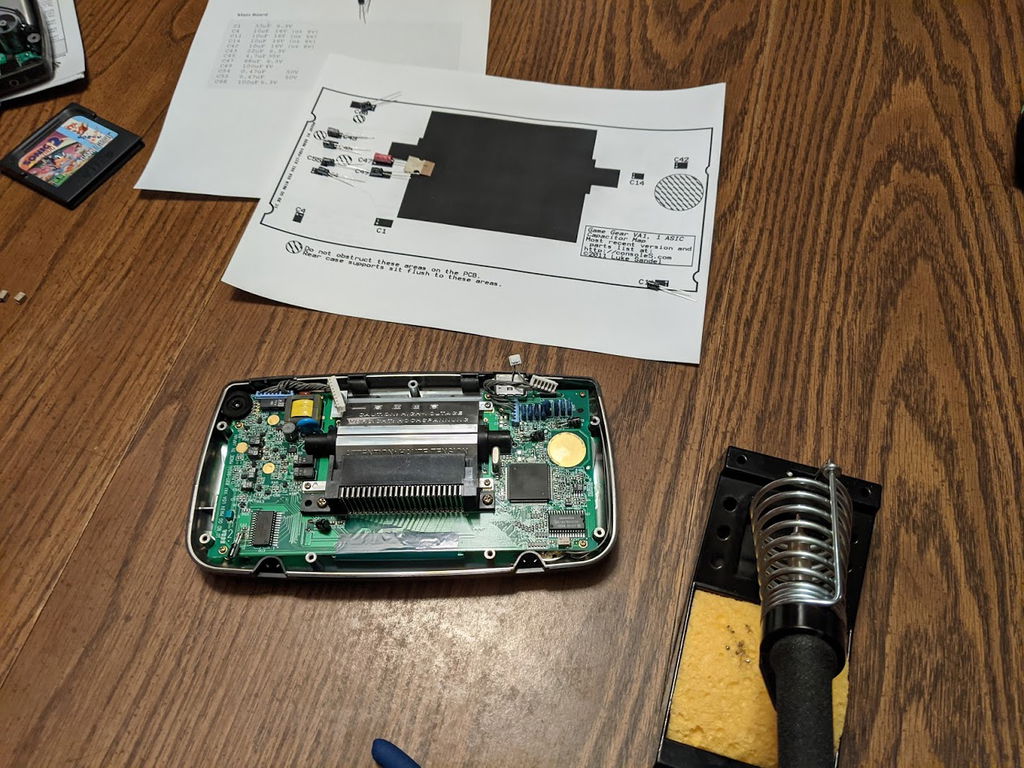

Nick Overstreet review photo Nick Overstreet review photo Nick Overstreet review photo
A
Alvaro Guevara Sanchez

Capacitors Kit for Sega Game Gear

M
Mitchell Johnston
Caps worked great

They worked great and brought one with major screen problems back to life.
Only thing i wish they included, was maybe a sheet which said which Cap specifically went where (like 100uf to C39)

M
Matt Cichy
Perfect!

Just what I needed to get the job done.

S
Sean
Perfect

Fixed three now with these

P
Paul B
Capacitor Quality

Capacitors worked like a charm! Brought my non-functional Game Gear back to life.

W
William Johnson

Sega Game Gear Capacitors Kit

C
Christopher Bennett
Game gear capacitors

These capacitors brought my dead game gear back to life. Thank you.

S
Sergio Ayon
Guide book or notes would be helpful!

Great but was hoping of receiving a guide book or some notes in installing capacitors.

S
Scott
Exactly what I wanted

Everything I ordered is perfect. I would love it if retromodding sold a soldering iron with the right kind of solder and other soldering stuff. It took a lot of research and some experimenting to find the right combination of soldering iron, iron tip, solder, and other things needed to clean the iron, clean old solder, clean the circuit board, etc.

S
Shane Wallace
Beginner success

I have never soldered through hole or surface mount caps before, and with some viewing of how-to videos on YouTube, I was able to successfully recap my fame gear and getting it working, first try.

Kit has more than enough to recap all caps n the game gear.

K
K.N.
Rise from your grave!

Caps (both sets) came faster than was quoted (although I only live 2 hours away I shouldn't be shocked). Couple hours of work and my Game Gear is back working again! Great kit(s) for anyone looking to cap swap.

L
Liam Snow
Awesome!

shipped super fast, only gripe is I forgot to get the psu caps, but that's on my part lol

T
Taylor Beaudoin
Got my Game Gear working again with these

Had a black screen with horizontal lines, replaced all of the caps with these and now it's working like new again.

A
Alexandre Parr
Fast shipping and good products

Fast shipping and good products. Thanks!
