IPS LCD (RIPS V5) TV Version for Game Boy

If you're looking for a crisp, full-sized backlit LCD for your Game Boy, look no further than this IPS LCD kit. This kit contains everything required to give your old DMG a bright new display. In addition, this kit features support for the included AV out cable, allowing you to play on your television.

The viewing area is the same size as the stock display, meaning no special lens is required! The DIY kit will provide you with all that you need to install this LCD, and will require some soldering for the Game Boy speaker(not included).

If you're looking to go all the way with refreshing the look of your old Game Boy, check out our shells, buttons, and glass lenses!

Features

• LCD replacement for original Game Boy
• Includes replacement front PCB with button contacts
• Minor soldering is required
• Minor shell trimming required
• Same viewing area as the original display
• On screen display to control settings
• Brightness control
• Multiple color modes to choose from
• "Color adjust" option to allow for further customization of color palette
• AV out for playing on TV

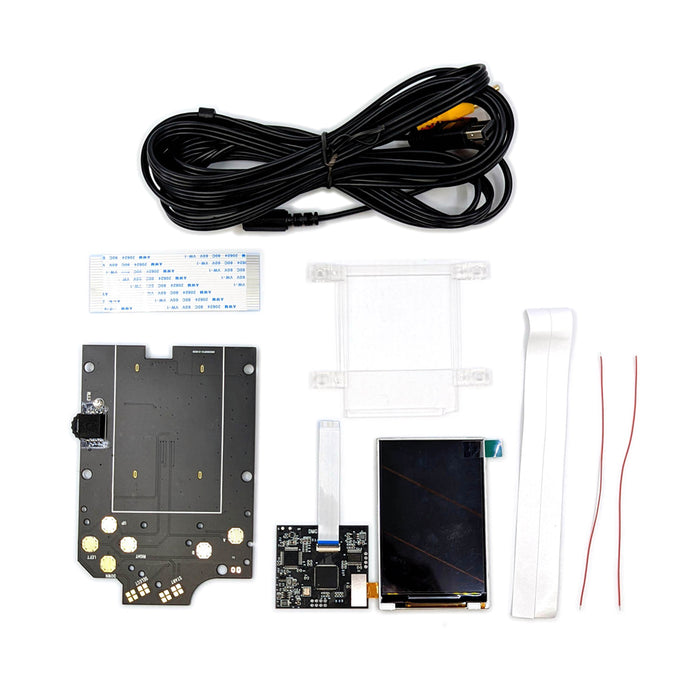

Included

• 1 x IPS LCD
• 1 x Front PCB

• 1 x Video Driver PCB
• 1 x Front PCB Ribbon Cable
• 1 x Video Driver PCB Ribbon Cable
• 1 x Bracket
• 1 x Adhesive
• 1 x AV out cable

Documentation

• The kit includes a bracket, but we also have our own in-house "upgraded" bracket available here
• If you'd like to 3D print your own IPS LCD centering bracket, our .STL file is open source and available on Thingiverse

Notes

• This is an aftermarket product and may not feel identical to its genuine counterpart
• Some minor shell modification is required, involving cutting the screw posts on the interior front of the shell. This trimming can be accomplished with a pair of side cutters.
• The on-screen battery display is a rough estimate, and may not be accurate

Warning

• We strongly recommend testing the display before installing it in your console. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
• The ribbon is very fragile, be sure to handle it carefully to avoid damage.
• Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
