AGS-101 Voltage Regulator for Game Boy Advance

AGS-101 Voltage Regulator for Game Boy Advance

by Retro Modding
$13.64 USD - $21.79 USD
$13.64 USD
$13.64 USD - $21.79 USD
$13.64 USD

Our in-house voltage regulator is now available for your custom modding projects.

On its own, the Game Boy Advance doesn’t feed the AGS-101 enough power, meaning it's not as bright as a backlit GBA SP. Our in-house VR provides the appropriate voltage and current to produce a clear backlit image. It's so bright you can even play in the full sun! With greater stability and a compact size, it's never been easier to mod your Game Boy Advance.

For more control, upgrade to our VRV2, which combines our voltage regulator with our in-house brightness controller.

Features

  • Dramatically improves the brightness of the AGS-101 LCD by supplying the appropriate output voltage of 12.2V
  • Operating voltage between 1.7V and 3.2V (meaning no flickering with low batteries)
  • Supports software-based sleep mode included in select games (Super Mario Bros. 3, Zelda, etc.) through low-power mode
  • Smaller footprint than similar boards (9.2mm x 13mm)
  • Simple four-wire installation

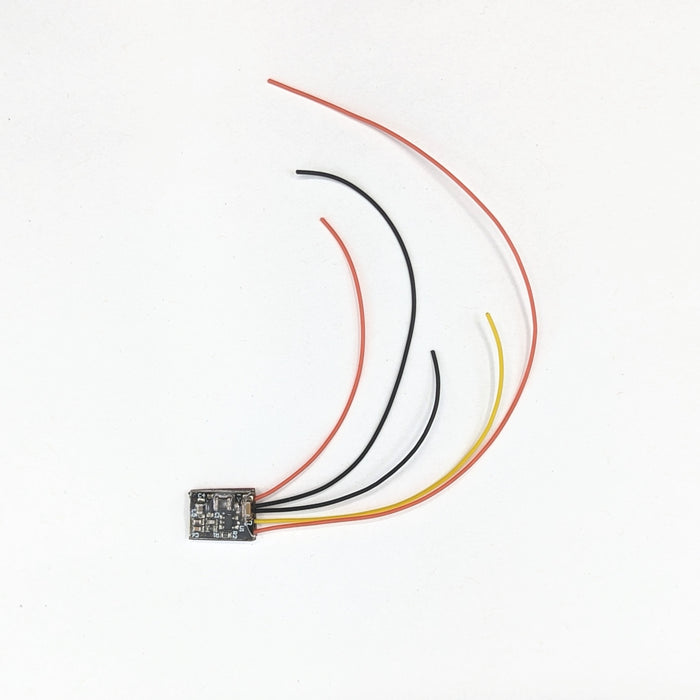

  • Pre-wired board includes wires of the appropriate length already soldered to the board, as well as heat shrink tube and mounting tape already installed

Specs

  • Dimensions: 9.2 mm x 13 mm x 3.2 mm
  • Input Voltage: 1.7 to 3.2 V
  • Output Voltage: 12.16 V
  • Termination: Solder pads
  • Weight: 0.35 grams
  • Switching Technology: Step-up DC-DC converter
  • Max Switching Current: 350 mA
  • Max Operating Temperature: 85°C
  • Number of Wires for Installation: 4

Included

Board Only

  • 1 x Retro Modding's AGS-101 Voltage Regulator

Board + Simple Install Kit

  • 1 x Retro Modding's AGS-101 Voltage Regulator
  • 1 x Shrink tube
  • 1 x Wiring kit

Pre-Wired Board

  • 1 x Retro Modding's AGS-101 Voltage Regulator with pre-soldered wires

Documentation

Solder points:
Vin > CP1
GND > (LCD- & BT-)
EN/Sleep > C35
Vout > LCD+

Voltage Regulator

Notes

  • This is an in-house product. For troubleshooting or support queries, please reach out to us directly on Facebook or by email at support@retromodding.com
  • Intended for use in Game Boy Advance AGS-101 mods
