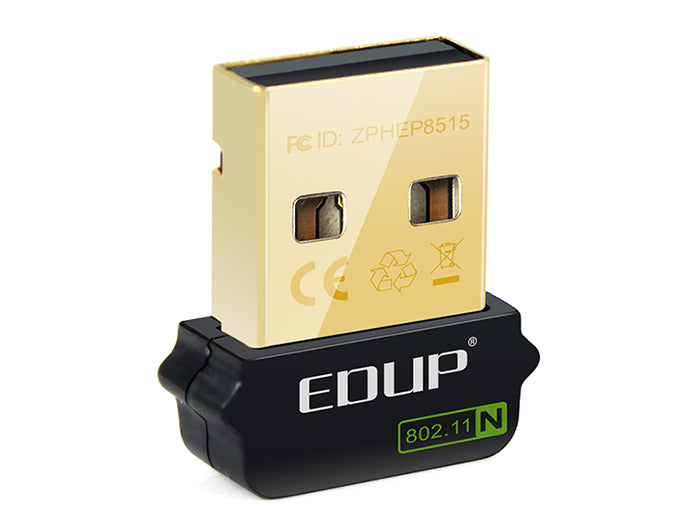

EDUP 150 Mbps Mini USB WiFi Adapter

EDUP 150 Mbps Mini USB WiFi Adapter

by EDUP
$13.64 USD - $13.64 USD
$13.64 USD
$13.64 USD - $13.64 USD
$13.64 USD

EDUP’s Wireless-N USB 2.0 Adapter enables you to connect your consumer electronics devices to a Wireless-N network in your home or office. It's the perfect tool to connect your Freeplay CM3 unit to WiFi.

Wireless-N networks are five times faster than traditional Wireless-G networks and are excellent for the high-speed data transfers required of online gaming. The mini USB WiFi adapter's simple setup allows you to connect your device to the internet to make full use of the Raspberry Pi's potential.

Features

  • MIMO technology improves data throughput and range over existing 802.11b/g products
  • Greater coverage than Wireless-G networks
  • Compatible with Wireless-G and Wireless-B networks
  • WiFi Protected Setup (WPS) for easy installation
  • Operating distance of up to 300 ft indoors and 900 ft in open space
  • Data transfer rate of up to 150 Mbps
  • Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
  • Enhanced WEP and WPA wireless security for protected Internet access
  • 64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
  • Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
  • Supports Ad Hoc and Infrastructure modes
  • Supports IEEE 802.11e standard
  • Compatible with the Freeplay CM3
  • Can also be used to provide high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer

Specs

  • Wireless Standards: IEEE 802.11n (draft), IEEE 802.11g, IEEE 802.11b
  • Host Interface: High speed USB2.0/1.1 interface
  • Data Rate 802.11n: Up to 150 Mbps (downlink) and 150Mbps (uplink)
  • Data Rate 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
  • Data Rate 802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
  • Frequency Band: 2.4GHz ISM (Industrial Scientific Medical) Band
  • Chipset: Realtek8188CUS
  • Technology: Fixed USB interface with ultrasonic wave
  • Interface: Golden-plated, laser etching
  • RF Frequency: 2412 ~ 2462 MHz (North America); 2412 ~ 2472 MHz (Europe); 2412 ~ 2484 MHz (Japan)
  • Radio Channel: 1-14 channels (Universal Domain Selection)
  • Range Coverage: Up to 3 times farther range than 802.11g
  • Antenna Type: Integrated Antennas
  • Roaming: Full mobility and seamless roaming from cell to cell
  • RF Output Power: 13 ~17 dBm (Typical)
  • Modulation 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
  • Modulation 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
  • Modulation 11b: DQPSK, DBPSK, DSSS, CCK
  • Data Security: 64/128-bit WEP Encryption, WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
  • Network: Network Auto-switch to use 802.11n or 802.11g or 802.11b mode; supports Ad-Hoc, infrastructure WLAN network; wireless roaming; data rate auto fall-back under noisy environment or longer range distance; site survey with profile function
  • Configuration: Plug-and-play setup and installation
  • Management: Utility supports 2000 / XP/ Vista
  • Media Access Control: CSMA/CA with ACK
  • LED Indicator: Link/Active (Green)
  • Operating Systems:  winxp, winvista, win7, win8, win8.1,  mac10.4-mac10.8, Linux kernel 2.6.18-3.9, Android 1.6-2.3 and 4.0-4.2
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 75°C
  • Operating Humidity: 10% to 90% (non-condensing)
  • Storage Humidity: 5% to 95% (non-condensing)
  • Compliant: FCC (USA), CE Mark (Europe), RoHS Compliant, and Wi-Fi Compliant

Included

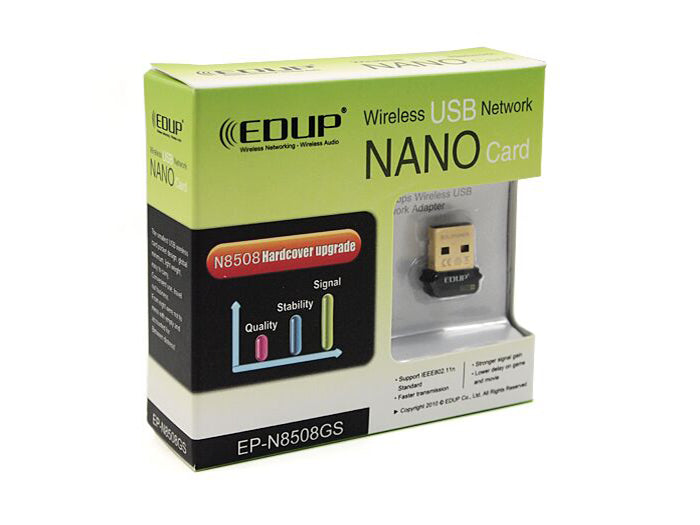

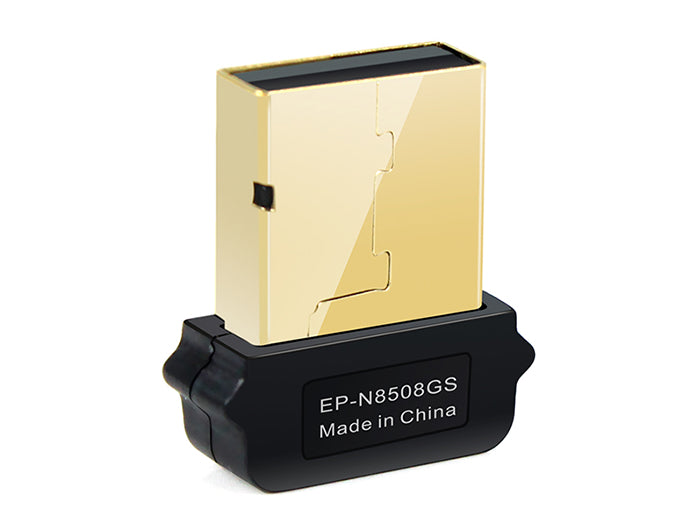

  • 1 x EDUP EP-N8508GS WIreless USB Network Nano Card

Notes

  • Depending on what Freeplay build you're choosing, you may not need this product. The Raspberry Pi Zero W includes built-in wireless capabilities and does not require this product. If you're using the Raspberry Pi Zero, then you may want this USB device, especially to set up your system.
