AMOLED Touch Screen Kit with Laminated Lens for Game Boy Color
by Hispeedido
Sold out
Original price
$65.99 USD
-
Original price
$65.99 USD
Original price
$65.99 USD
$65.99 USD
-
$65.99 USD
Current price
$65.99 USD

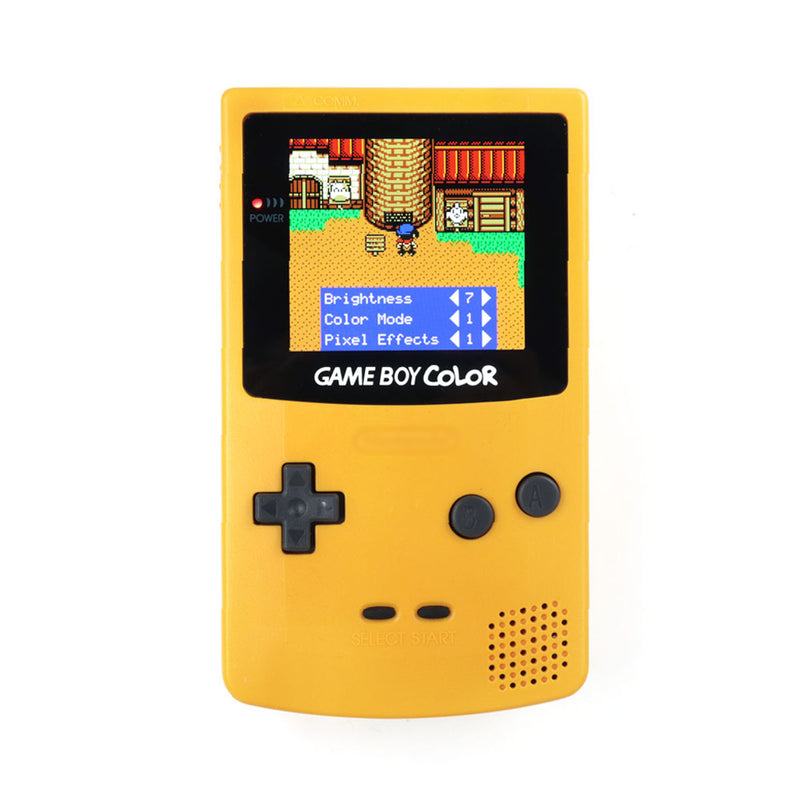

This new display by HISPEEDIDO features an AMOLED display, and a touch screen to control the display options! The screen lens comes already adhered to the display with an illuminated "Game Boy Color" logo. The display installation is easier with only 1 wire to solder!
This display is compatible with our Funny Playing Shell (with text) for Game Boy Color and our Funny Playing Shell (No Text) for Game Boy Color.
Features
- Only one wire to solder!
- Illuminated logo with 32 color variants
- 25% larger than the stock LCD
- High Definition AMOLED Screen with 4 pixels to 1 pixel ratio.
- Laminated Display

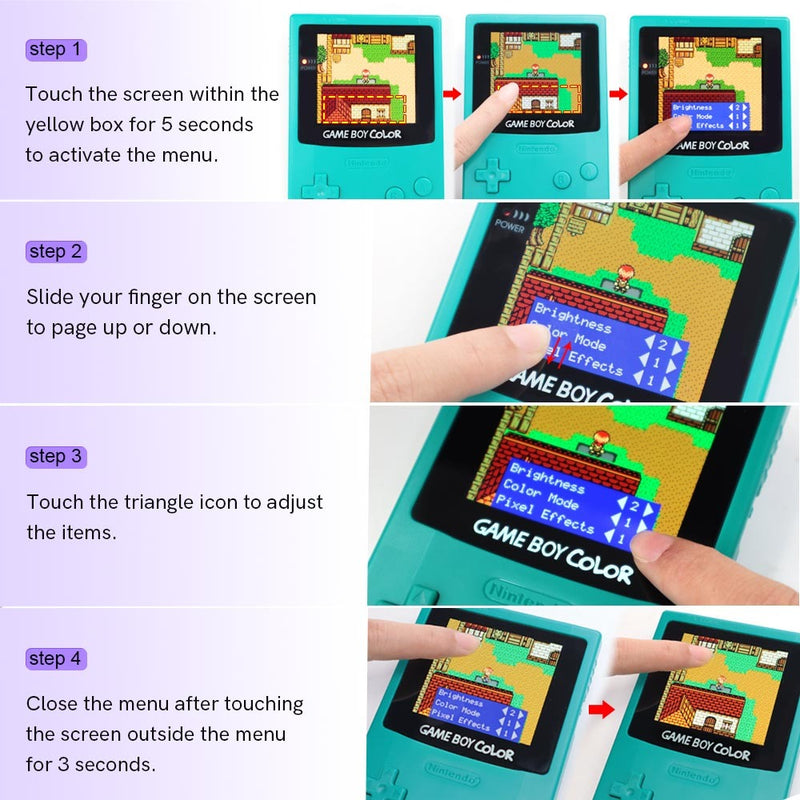

- Built-in OSD Menu controlled via the tactile display
- Built-in 4 Retro Pixel effects.
- Frame blending (FRM) On/OFF function (required for a few games).
- 10 brightness levels and 8 color modes.
- Controls to adjust the positioning of the image
- Battery level indicator.
Included

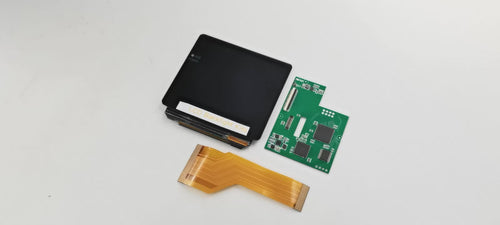

- 1x Q10 AMOLED display + Driver PCB
- 1x Ribbon cable
- 1x 50mm wire (Power)
Notes

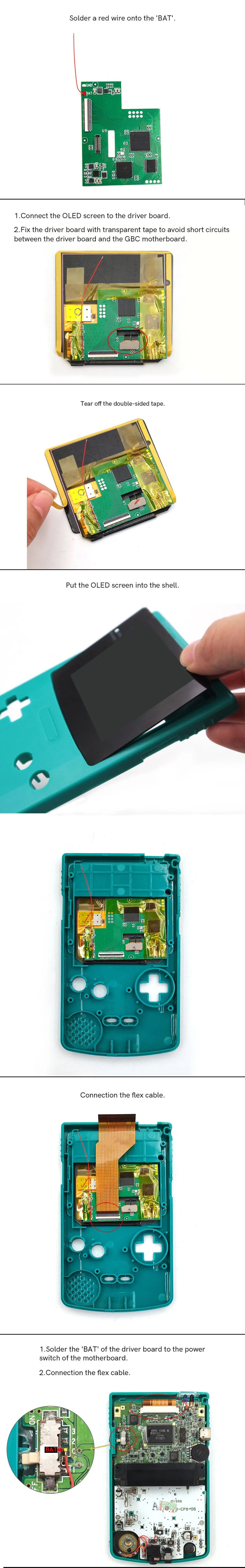

- Some soldering is required, install as shown here
- We recommend using this display with the Funny Playing's GBC shells, as they are designed to make installation of this kit as easy as possible; while this kit can be installed on other shells, some shell modification is required to accommodate the pre-adhered lens
Warning
- To test this display you will need to solder the wire!
- We strongly recommend testing the display before installing it in your console. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
- The ribbon is very fragile, be sure to handle it carefully to avoid damage.
- Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
